CT2 Single Gate - Made to your measurements
This product matches our wrought iron style
and our
. Each gate is made to order to the exact size you require, therefore yours will be a bespoke product.
This angular style would suit contemporary, mid-century, post war and Arts and Crafts houses alike. Due to the position of the triangles on this style, minimum height limits apply. Please see our Product Specification section and images below for details of height limits and design variables.
Unless otherwise specified, your gate will be supplied in our standard finish which is a matte black primer/undercoat.
Included with CT2 Single Gate
- Flip latch
- Adjustable eye bolts
- Brackets
- Hinges
- Nuts and bolts required to bolt your single gate in place
Please note we do not supply any nuts or bolts required for fixing your ironworks into brickwork, stonework or the ground. We advise you to buy these locally as there are many different types according to the materials to which the ironworks will be fitted.
Optional extras available to order at additional cost
- Hot dip galvanizing - please select prior to checkout
- Powder coating - please select prior to checkout
Measuring and Sizing
All sizes quoted are gap sizes not actual gate sizes. Please measure from brick to brick and we will calculate all allowances required for brackets, hinges, clearances etc. before we make your gate. Please see How to Measure Accurately for further advice before placing your order. If you cannot see your size, please contact us with the dimensions you require, and we will prepare a quote for you. We make bespoke sizes without the high price tag of made to measure products. For example, if you require a gate measuring 1150mm high x 914mm wide we would only charge you for 1220mm high x 914mm wide (the next size up in our pricing band).
Heavy duty steel posts are required to suit these gates, POA.
Product Specification

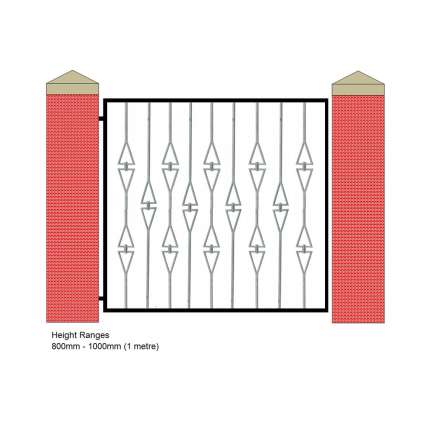

- Due to height limits design variables apply, see images for details
- 14mm solid square vertical infill bars spaced at 100mm intervals
- 30mm x 8mm horizontal top and bottom bars for frame
- 30mm x 30mm square hollow section verticals for frame
- Gates measuring 700mm to 1000mm high are made with one row of decoration and 1400mm to 2000mm high gates with two rows of decoration.
Finish Specification
Matte Black Painted Finish – Standard Finish
This is a good quality spray painted primer designed to act as a base coat for finishing by the customer with paint suitable for exterior metal surfaces. Please note that this primer alone is not weatherproof and will need to be painted before attaching any fixings or placing outdoors. If you require rustproof protection we would recommend hot dip galvanizing. Unless your ironworks are galvanized rust will begin to show through over time. This is not a fault but is a natural trait of steel.
Hot Dip Galvanizing
This is a protective coating that is carried out to British Standard BS EN ISO 1461. It provides rustproof protection for 70 years. Please note that hot dip galvanized products have a bright silver/grey appearance that, if left unpainted, will weather over time. Our galvanized products may have a slightly uneven colour and texture due to the fine finishing we carry out by hand. We do this to smooth out small burrs or shards of zinc that naturally occur during the galvanizing process. This does not diminish the protective properties provided by the galvanizing.
Powder Coating
Provides a much harder finish than conventional paint. Our powder coating is applied to an average thickness of 80 microns, exceeds the industry standard of 60 microns and complies with British Standards BS EN ISO 13438. Comes in a high quality black satin finish giving a lustrous sheen. Other colours of powder coating are available on request, please email us with your requirements.
Unless your ironworks are galvanized first rust will begin to show through over time though this may not happen for several years depending on the surrounding environment. This is not a fault but is a natural trait of steel and any rust spots that appear on powder coated goods can be sanded down and touched up with paint suitable for exterior metal surfaces.
