CT1 Railings - Made to your measurements

This product matches our wrought iron style CT1 Double Gates and our CT1 Single Gates .  Each railing panel is made to order to the exact size you require, therefore yours will be a bespoke product.

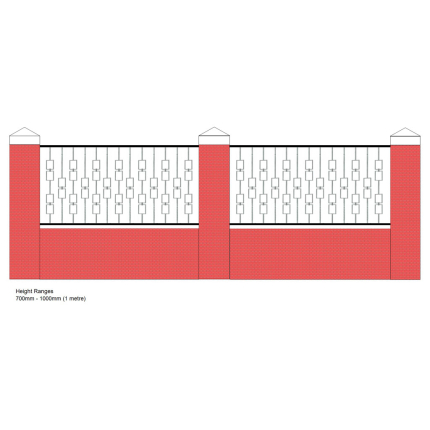

This angular style would suit contemporary, mid-century, post war and Arts and Crafts houses alike. Due to the position of the squares on this style, minimum height limits apply. Please see our Product Specification section and images below for details of height limits and design variables.
Unless otherwise specified, your railing will be supplied in our standard finish which is a matte black primer/undercoat.

Included with CT1 Railings

Measuring and Sizing

All sizes quoted are gap sizes not actual railing sizes. Please measure from brick to brick and we will calculate all allowances required for brackets, posts, clearances etc. before we make your railing. Please see How to Measure Accurately for further advice before placing your order.
If you can’t see the size you need please contact us with the dimensions you require, and we will prepare a quote for you. We make bespoke sizes without the high price tag of made to measure products. For example, if you require railing at 550mm high x 914mm wide we would only charge you for 610mm high x 914mm wide (the next size up in our price band).
Click here to order steel posts to suit these railings.

Product Specification

• 14mm solid square vertical infill bars spaced at 100mm intervals
• 30mm x 8mm horizontal top and bottom bars for frame

Please see information below on the different finish options available.

Finish Specifications

Matte Black Painted Finish – Standard Finish
This is a good quality spray painted primer designed to act as a base coat for finishing by the customer with paint suitable for exterior metal surfaces. Please note that this primer alone is not weatherproof and will need to be painted before attaching any fixings or placing outdoors. If you require rustproof protection we would recommend hot dip galvanizing . Unless your ironworks are galvanized rust will begin to show through over time. This is not a fault but is a natural trait of steel.
Hot Dip Galvanizing
This is a protective coating that is carried out to British Standard BS EN ISO 1461. It provides rustproof protection for 70 years. Please note that hot dip galvanized products have a bright silver/grey appearance that, if left unpainted, will weather over time. Our galvanized products may have a slightly uneven colour and texture due to the fine finishing we carry out by hand. We do this to smooth out small burrs or shards of zinc that naturally occur during the galvanizing process. This does not diminish the protective properties provided by the galvanizing.
Powder Coating
Provides a much harder finish than conventional paint. Our powder coating is applied to an average thickness of 80 microns, exceeds the industry standard of 60 microns and complies with British Standards BS EN ISO 13438. Comes in a high quality black satin finish giving a lustrous sheen. Other colours of powder coating are available on request, please email us with your requirements.
Unless your ironworks are galvanized first rust will begin to show through over time though this may not happen for several years depending on the surrounding environment. This is not a fault but is a natural trait of steel and any rust spots that appear on powder coated goods can be sanded down and touched up with paint suitable for exterior metal surfaces.
